Featuring BCM’s Patented MK2 Upper Receiver
This proprietary design offers enhanced rigidity over the USGI product. The increased rigidity limits barrel deflection which aids in consistency/accuracy. Less flex also reduces premature damage, wear, and failure of bolt lugs from misalignment. A gas expansion chamber is machined above the charging handle track, combined with dual vents machined at the rear (each side, above charging handle latch) help to redirect and vent gas away the shooters face. U.S. Patent Numbers: 10670355, 10677549, D888182
Cold Hammer Forged Barrels
This process of manufacturing barrels has been used for European small arms for generations, and it is gaining popularity in the United States because of the increased barrel life and outstanding accuracy of a hammer forged barrel. The BCM BFH series of barrels are made right here in the USA. (Just like all the BCM products.)
M4 Feed Ramp Barrel Extension and Upper Receiver
In developing the USGI M4 carbine as one of the primary weapons for today's infantry, some modifications were performed to the original M16 platform to enhance the reliability of the shorter barreled carbines. With the shorter carbine gas system and the increased gas port pressure, the carbine cycled faster, and at times the cycle rate could be faster than the magazine would feed ammunition. One of the modifications done to increase reliable feeding included enhancing the angle and the length of the feed ramps.
This USGI modification was done to both the barrel extension and the upper receiver, creating a longer and steeper feed ramp. These Mil-Spec M4 feed ramps are part of the original CNC manufacturing process. As a result, the factory machined M4 feed ramps on the receiver are hard coat anodized which adds significant strength to the aluminum. This feature is offered on all BCM upper receivers and all BCM barrels.
T-Marked Upper Receiver
The contemporary M16/M4 rifle is built around the concept of modularity. All of the BCM flat top uppers feature a USGI type laser etched T-marks to provide addressing for the remounting of tactical accessories such as optics, laser sights, etc. This enables the weapon platform to be easily configured and then accurately reconfigured for each specific mission.
USGI 1/7 Twist Rate
The USGI 1/7 twist rate of all of the BCM barrels is the preferred twist rate by most professional infantryman. This twist rate has proven very versatile and can effectively run the new heavier 5.56 ammo that is hugely popular with military, private security personal, and personal defense for its' superior ballistics.
Mil-Spec Barrel Steel (Certified Mil-B-11595E)
BCM barrel steel is Mil-Spec per MIL-B-11595E, and is independently certified. This grade (CMV) of steel is a Mil-Spec steel used in the USGI M16 family of rifles; it is stronger and will last longer than the typical barrels offered in the commercial market. This Mil-Spec grade steel gets its' additional strength and rigidity from an increase in carbon and/or vanadium in the alloy. This will offer increased barrel life and performance through use in all types of extreme environments and temperatures.
Chrome Bore and Chamber
One of the first modifications that were made to the original M16 in the mid 1960's was the addition of the chrome lined bore and chamber. It is now a worldwide standard in the industry for a battle rifle. The chrome bore and chamber is harder than the barrel steel and will aid in chambering, extraction, and reliability. It increases velocity, and also resist against fouling and corrosion from extended use in the field. This gives the end user a longer barrel life with less required time in maintenance and cleaning.
Manganese Phosphate Barrel Finish
Barrels are parkerized with the manganese phosphate finish per Mil-Spec. Military specifications also state that the entire barrel surface is phosphate finished to create a porous surface to absorb oil as to resist against corrosion from the elements. BCM barrels are phosphated before installation of front sights. This is a much more extensive assembly operation, but insures that the entire barrel is finished and protected . . .even under the front sight base.
5.56 NATO Chambers
The USGI 5.56 NATO chamber is the best choice for effective deployment, reliability, and compatibility, of higher chamber pressures of military or high quality personal defense ammunition.
HPT / MP Inspected Barrels
Military specifications require that barrels undergo a HPT (High-Pressure Test) load as a part of quality assurance procedures. Commonly referred to as a proof load, the M197 HPT is rated for 70,000 psi. BCM barrels are proof loaded and then MPI (Magnetic Particle Inspected) to detect any possible flaws in the barrels surface. The barrels are MP inspected with both circular and longitudinal magnetic fields per ASTME1444-01 (current Mil-Spec) to assure a high quality finished product. All BCM barrels are marked HP MP as our proof load marking.
Black Mod 2 Stock
Black Mod 4 Pistol Grip

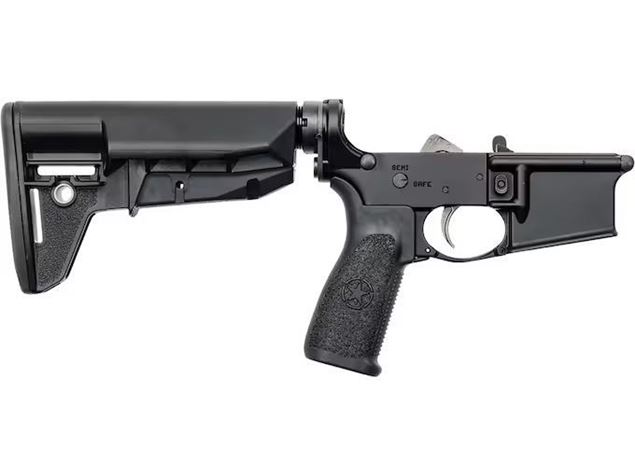

BCM4 Lower Receiver
PNT Trigger
Ambi MK2 Charging Handle - Large Latch
RMS M1T0 System for
- Lessens felt recoil, without compromising reliability
- Provides a more consistent carrier velocity, which can aid in accuracy, reliability over conventional carbine buffer system
- Increased internal counterweight travel reduces bolt bounce
- Internal spring to reduce noise of counter weight shifting and ensure more consistent weight placement
- Mil-Spec M16A4 rifle spring with more spring coils than M4 carbine, increases consistency and widens operating envelope
- Buffer made of 7075T6 aluminum, hard coat anodized for lasting endurance. Comprised of Mil-Spec components
(PLEASE NOTE: because of the MK2’s longer length some Mil-Spec stocks may not completely collapse closed all the way up to the M4 Lock nut.)
